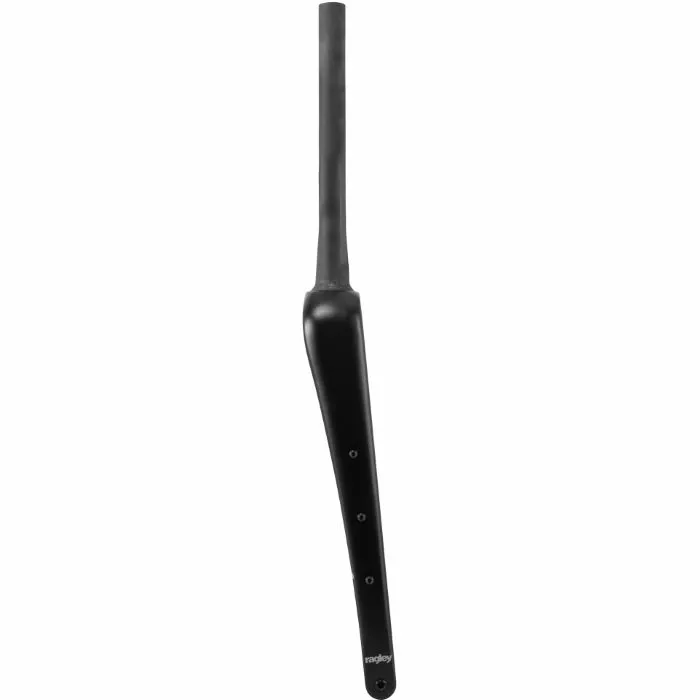

Ragley Trig Carbon Gravel Fork

Offering a full carbon build, mounts for panniers, dynamo routing as well as disc brake compatibility, the Ragley Trig Carbon Gravel Fork is a perfect upgrade for your gravel bike.

This high-quality gravel bike fork features a full carbon construction, which makes it not only incredibly stiff when climbing gravel mountain roads but also impressively lightweight when descending and powering up to speed on the asphalt. Ragley has also equipped this model with internal dynamic cable routing for USB charging and lighting, so riders can hide their cables and enjoy a sleek, clutter-free appearance on their ride. Coming kitted out with pannier bag mounts, it is well equipped for weekend gravel adventures by allowing you to easily attach your front pannier bag and bring essential items along with you on your travels.

Carbon Gravel Bike Fork with Disc Brake Compatibility

Whether you’re looking to explore countryside back roads or planning an epic gravel adventure, this versatile fork is engineered for reliable performance wherever your ride takes you. Thanks to its flat mount disc brake compatibility, riders will enjoy the benefits of more powerful and consistent braking operation. Ragley has also fine-tuned this model for excellent tyre clearance, which means that you can fit tyres up to 700 x 45c or 650b x 2.25. This makes the Ragley Trig Carbon Gravel Fork a great choice for durable, stiff and lighter performance when the smooth tarmac comes to an end.

Additional Item Top Features:

• Internal Dynamo Cable Routing for USB Charging and Lighting

• 4 Mount Positions panniers

• Integrated crown race for 1.5” 36 degree contact angle bearing

• Thru-Axle Spec: Length: 120mm; Thread Pitch: 1.5; Diameter:  M12; Thread length: 12mm

• Compatible with 12mm thru-axle hubs

Topfunktioner:

• Material: Full Carbon fork
• Use: Gravel
• Steerer Tube Diameter: Tapered 1 1/8″ to 1.5″
• Uncut Steerer Length: 300mm
• Fork Offset: 48mm; Axle to Crown: 398mm
• Axle Spacing: 12x100mm
• Brake Mount: Flat Mount Disc Brake
• Tyre Clearance: Up to 700 x 45c or 650b x 2.25
• Max Load: 4kg (per leg)
• Weight: 580g
