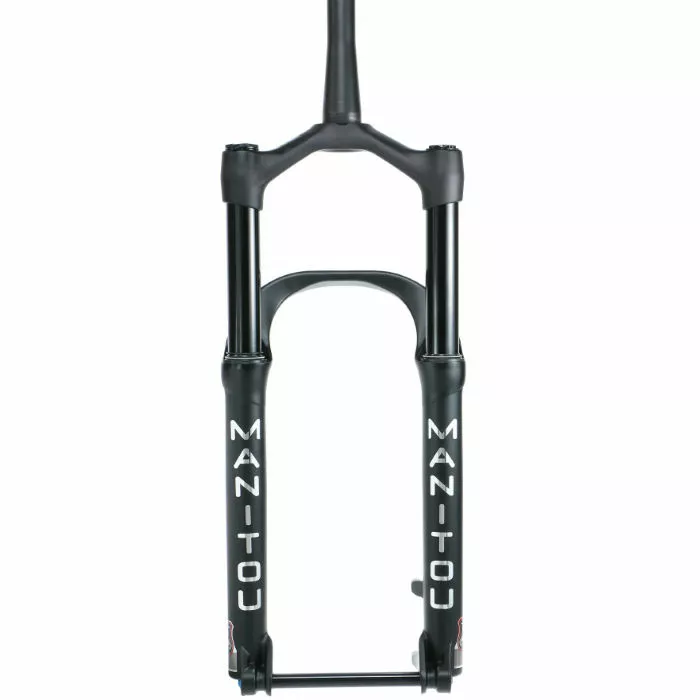

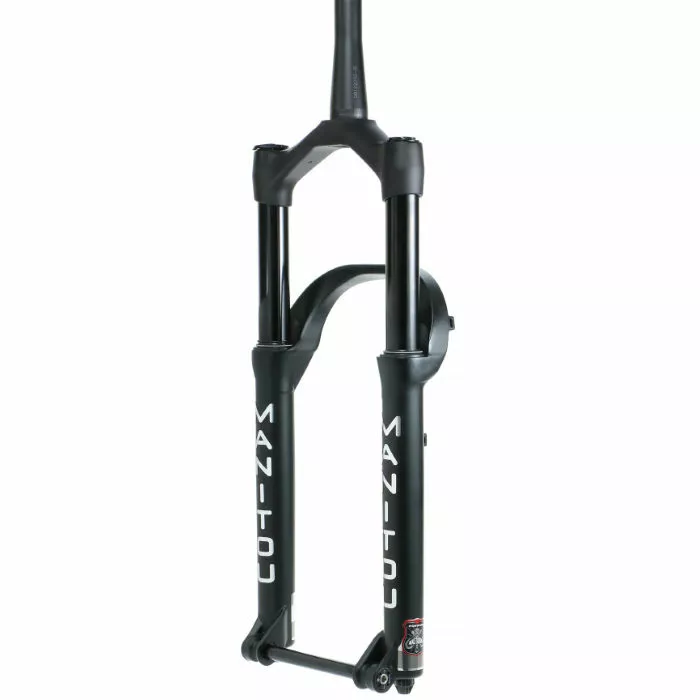

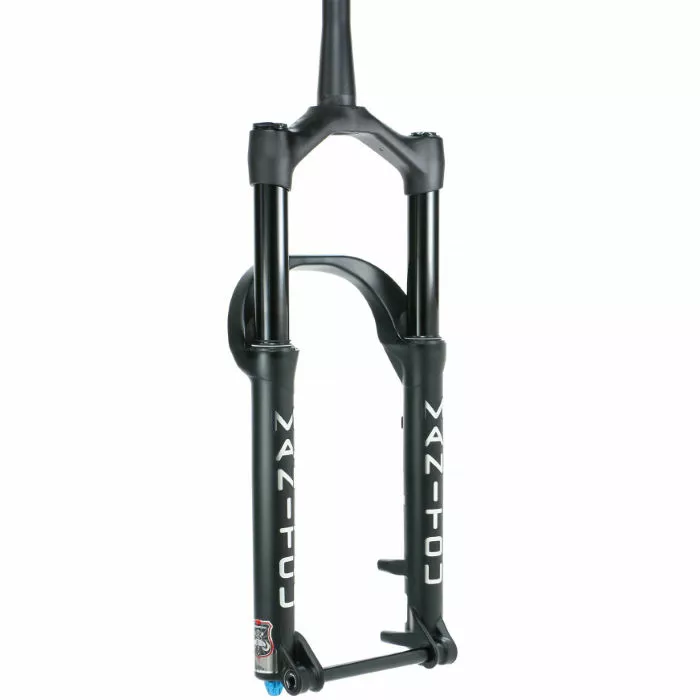

Manitou Mastodon Comp Suspension Fork

Offering real-world trail suspension for fat bikes, the Manitou Mastodon Comp Suspension Fork offers smooth and dependable front-end suspension performance with a wide range of adjustments.

This versatile fat bike fork is equipped with a robust straight wall aluminium leg construction, which makes it more than capable of handling the impacts and intensity associated with trail-riding. Available in either a standard or an extended ride height option, the standard version fits up to 26×4” / 27.5×3.8” tyres, while the extended version fits up to 26×5.15” / 27.5×4.5” tyres. Engineered to perform well in winter or summer riding conditions, this model is also kitted out with an Expert Air spring with IVA, VTT compression damping and In-leg adjustable TPC rebound damping. This makes it easy for riders to fine-tune it to perfectly match their riding style as well as the terrain.

Item Top Features Continued:

Max Tyre Size: Size 26×4″/27.5×3.8″ (Standard); 26×5.15″/27.5×4.5″ (Extended)

Offset: 51mm

Ride Height: 493-551mm (Standard); 513-571mm (Extended)

Travel: 120mm

E-Pac: Yes

Manufacturer’s Part Numbers:

191-35528-A102 Matt Black Standard 120mm
191-35528-A602 Matt Black Extended 120mm

Topfunktioner:

• Material: Leg: 6000- Series Straight Wall Aluminium; Crown: Forged Aluminium, Hollow
• Axle: 15mm x 150mm Hexlock SL
• Use: MTB
• Steerer Diameter: 1.5″ Tapered; Leg Diameter: 34mm
• Spring: Expert Air with IVA
• Compression Damping: Damping VTT
• Rebound Damping: In-leg adjustable TPC
• Adjustments: Air, Air Volume, Rebound, 3-position Compression (Open, Trail, Lock)
• Brake Compatibility: Post Mount 180mm (203mm Max)
• Weight: 2354g (Standard) 2374g (Extended)
