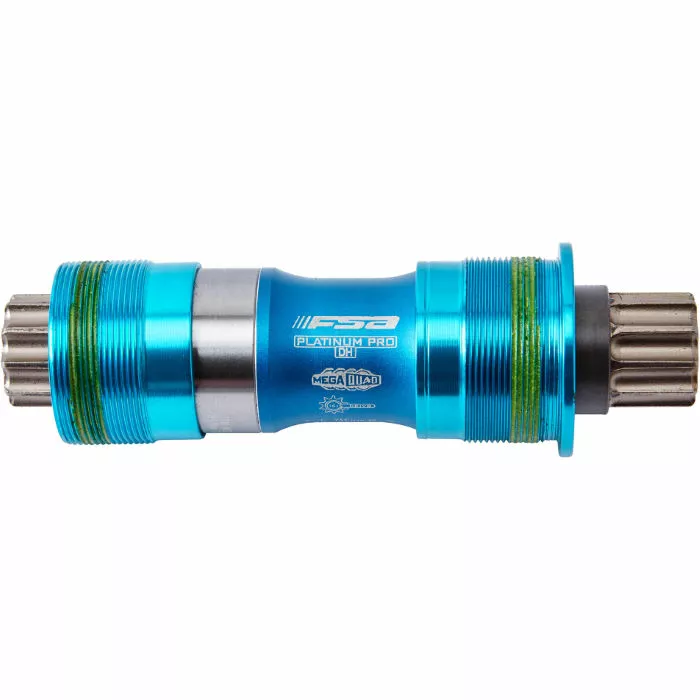

FSA Platinum Pro MegaQuad ISIS E-Type BB

Constructed with a 6/4 titanium spindle, the FSA Platinum Pro MegaQuad ISIS E-Type BB is a premium bottom bracket for use with FSA’s ISIS type chainsets. This particular model is designed for bikes that use E-Type front derailleurs.

If you want to make sure you’re making the most of every crank rotation, this is the bottom bracket to pair with your FSA ISIS type road bike chainset. With its forged titanium spindle and large upgraded bearings, it gives you super-smooth rotation and outstanding power transfer.

Tech Info: Please note – The first two numbers in our options (eg. “68” 70 or “73”) relate to how wide your bike’s bottom bracket shell is in millimetres. The other three numbers (eg. 118) relate to how long your current bottom brackets spindle (axle) is in millimetres.

The 68 and 73mm sizes are the “English thread” type, the 70mm size is the “Italian thread” type – please measure your bike’s bottom bracket shell width to confirm which size you need.

Topfunktioner:

• Titanium Nitride coated spindle
• MegaQuad: 2x double-row deep-groove full-complement sealed cartridge bearing
• Cold forged aluminium cups
• Composite anti-creak sleeve
• Updated and improved external water seals
• AL7075 alloy crank bolts (M-14)
