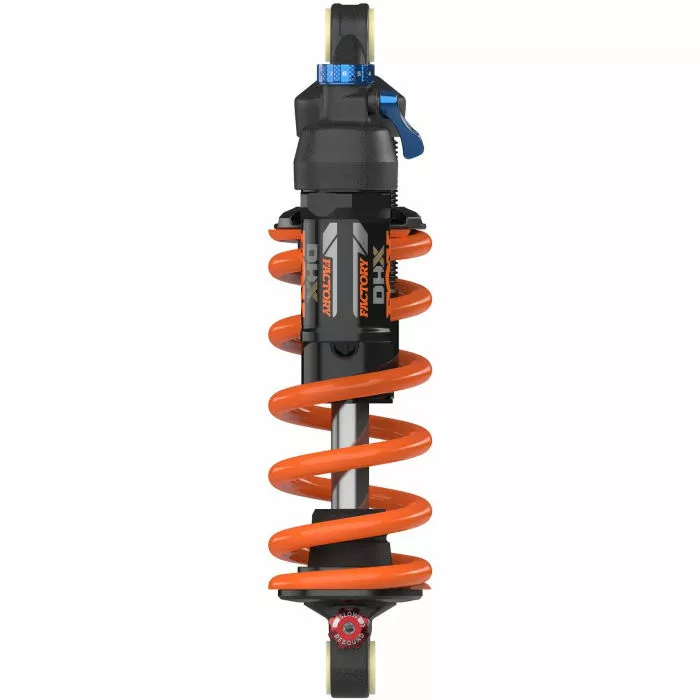

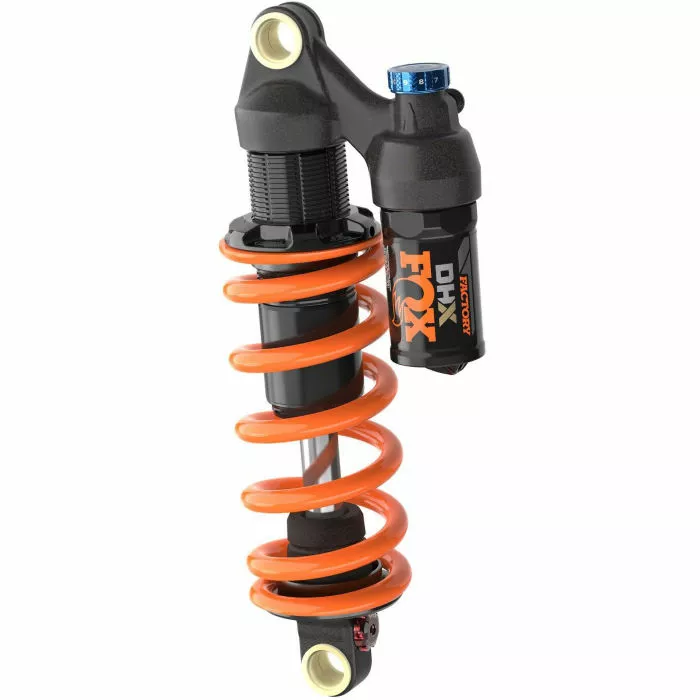

Fox Suspension DHX Factory 2Pos-Adj Shock

Featuring a coil spring ready design, a high-flow main piston and an MCU bottom-out bumper, the Fox Suspension DHX Factory 2Pos-Adj Shock delivers smooth and dependable rear-end suspension performance.

This Factory Series mountain bike (MTB) rear shock is built for long days on your local trails with your riding buddies as well as exploring new routes on your own adventures by providing coil performance for the trail and beyond. It features a hard-wearing chromoly (CrMo) steel shaft coating that has ultra-low friction properties and is highly durable as you tackle demanding terrain conditions on your ride. Packed with many of Fox Suspension’s proven technologies, this model is also part of the renowned Factory Series family that’s designed to exceed the demands of Factory-level riders.

Coil Spring and Adjustments

Ready for wherever your next trail ride leads you, this rear shock is kitted out with a coil spring ready design and a range of adjustment features to help you dial in your ideal settings. Fitted with an independent two-position lever, you’ll benefit from being able to easy switch between open and firm modes to suit the terrain conditions. In addition, its low-speed compression and rebound adjustments make it simple to fine-tune its suspension performance to match your riding style for a more rider-tuned feel.

Coil performance for the trail and beyond. Answering the call of riders seeking the ultimate in plush suspension, the Fox Suspension DHX Factory 2Pos-Adj Shock brings coil-sprung, magic-carpet, trail smoothing performance in a wide range of configurations to the trails and beyond.

Technologies:

Factory Series: “Factory” says it all – feature-packed and designed to exceed the demands of Fox Suspension’s Factory-level riders. What we sell is what they race.

Updated chassis and damper.

High-flow main piston.

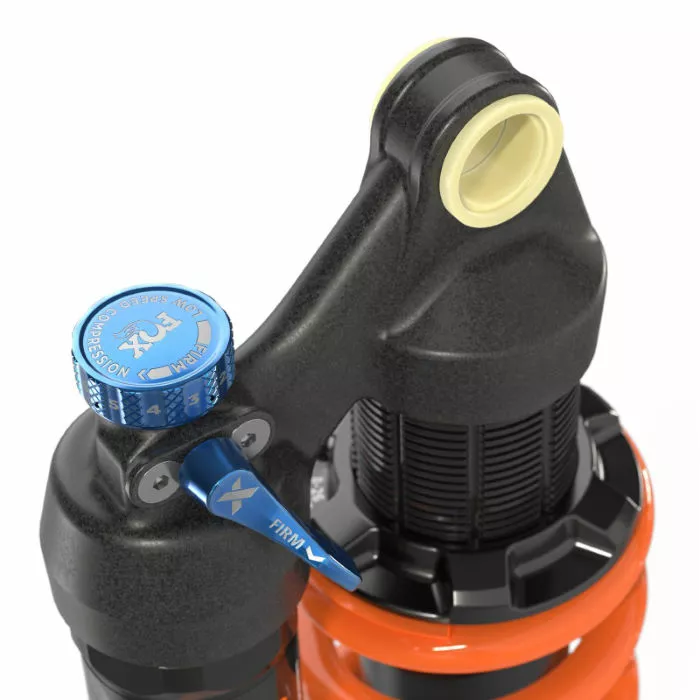

Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster.

Independent firm mode circuit – 2 position adjuster.

Optimised reservoir lengths per shock size.

Hydraulic top out feature.

Reduced damper noise.

MCU bottom-out bumper.

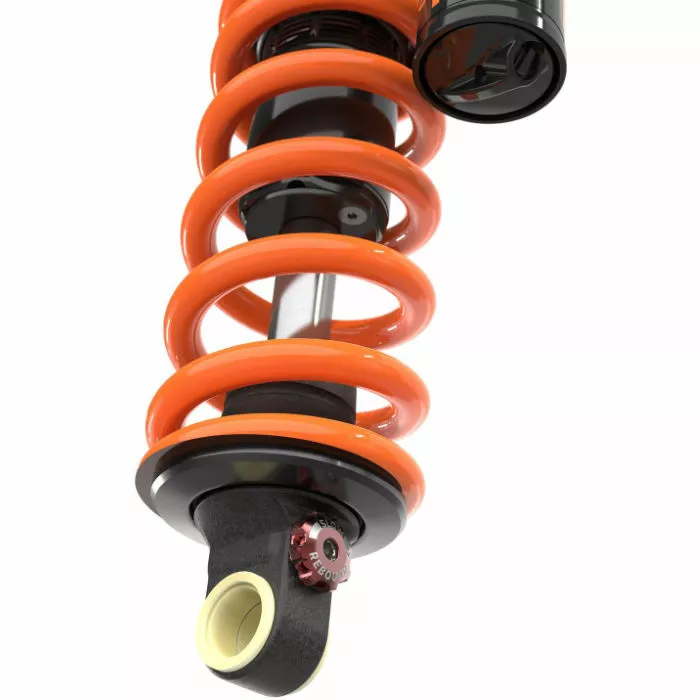

Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access).

Spring preload collar with detents and max / min number of clicks and direction arrow.

Full diameter spring retainer with wire ring (like DHX2).

Spring scuff guard on body (like DHX2).

Manufacturer’s Part Numbers:

978-01-029 Black 210x50mm Metric
978-01-031 Black 210×52.5mm Metric
978-01-033 Black 210x55mm Metric
978-01-035 Black 230×57.5mm Metric
978-01-037 Black 230x60mm Metric
978-01-039 Black 230x65mm Metric
978-01-041 Black 185×52.5mm Trunnion
978-01-043 Black 185x55mm Trunnion
978-01-045 Black 205x60mm Trunnion
978-01-047 Black 205×62.5mm Trunnion

Topfunktioner:

• Shaft Coating: Chromoly (CrMo) Steel
• Use: MTB
• Spring Type: Coil spring
• Adjustment Lever: Independent two-position Open/Firm lever
• Adjustment Features: Low-speed compression and rebound
• Coil Spring Preload: Detents on spring collar

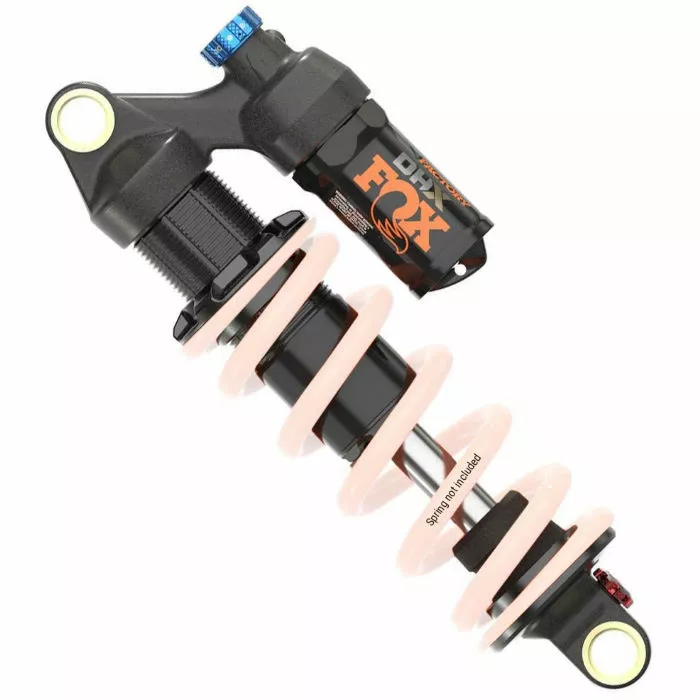

• Please note: The spring is not included with this product but is available separately
